Taper ball end mill application: This model is intended for confirmed CNC wood relief and rounded-profile work; verify material, machine, and toolpath before cutting.
Application: This taper ball end mill is designed for deep 3D relief and mezzo-relief engraving on rosewood, hardwood, and other suitable wood materials.
Features: The tapered ball-end profile produces smooth rounded relief surfaces and controlled transitions on deep carving details. Made from solid carbide, it provides a sharp cutting edge, good wear resistance, and stable performance when matched with suitable CNC speeds, feeds, and workholding.

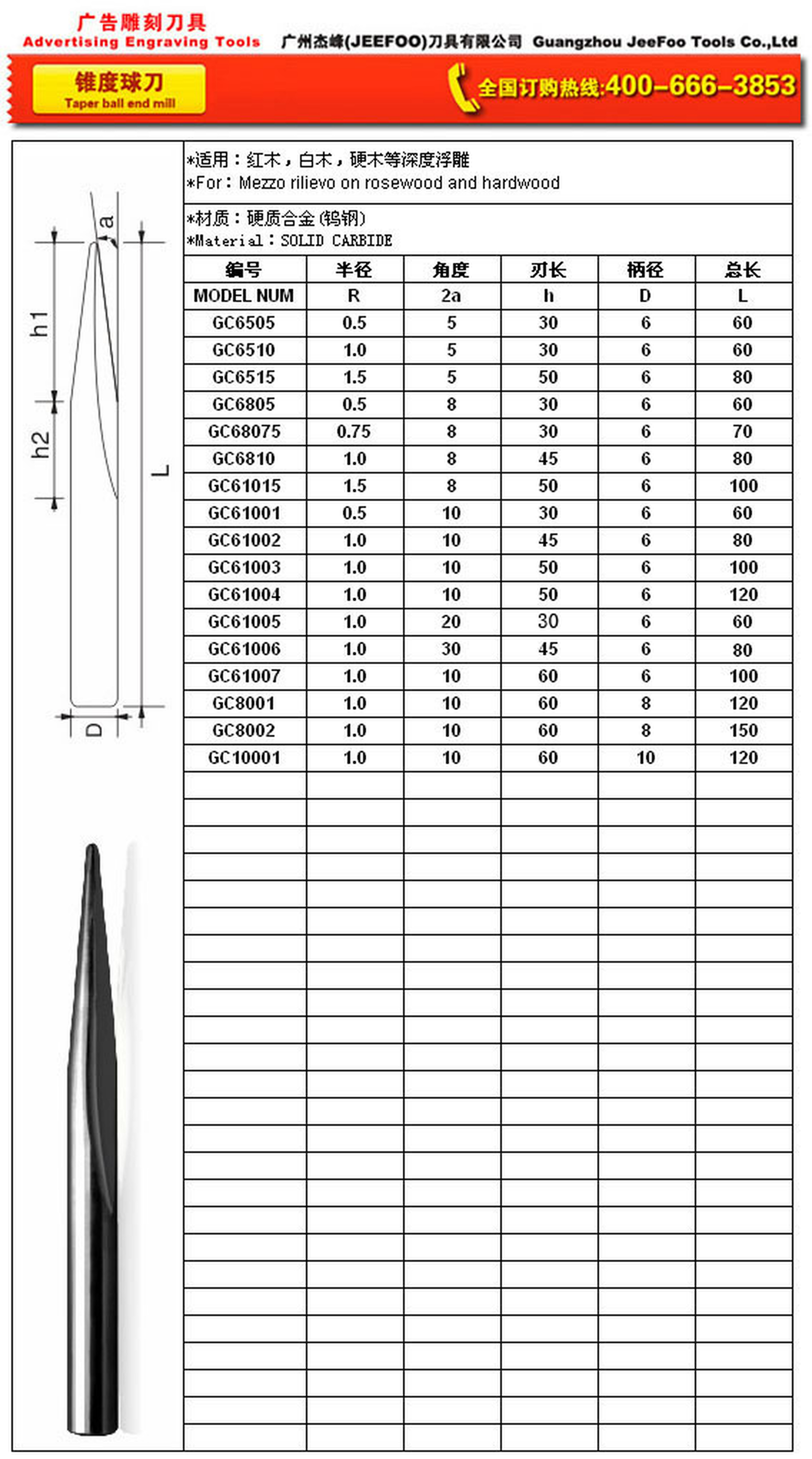

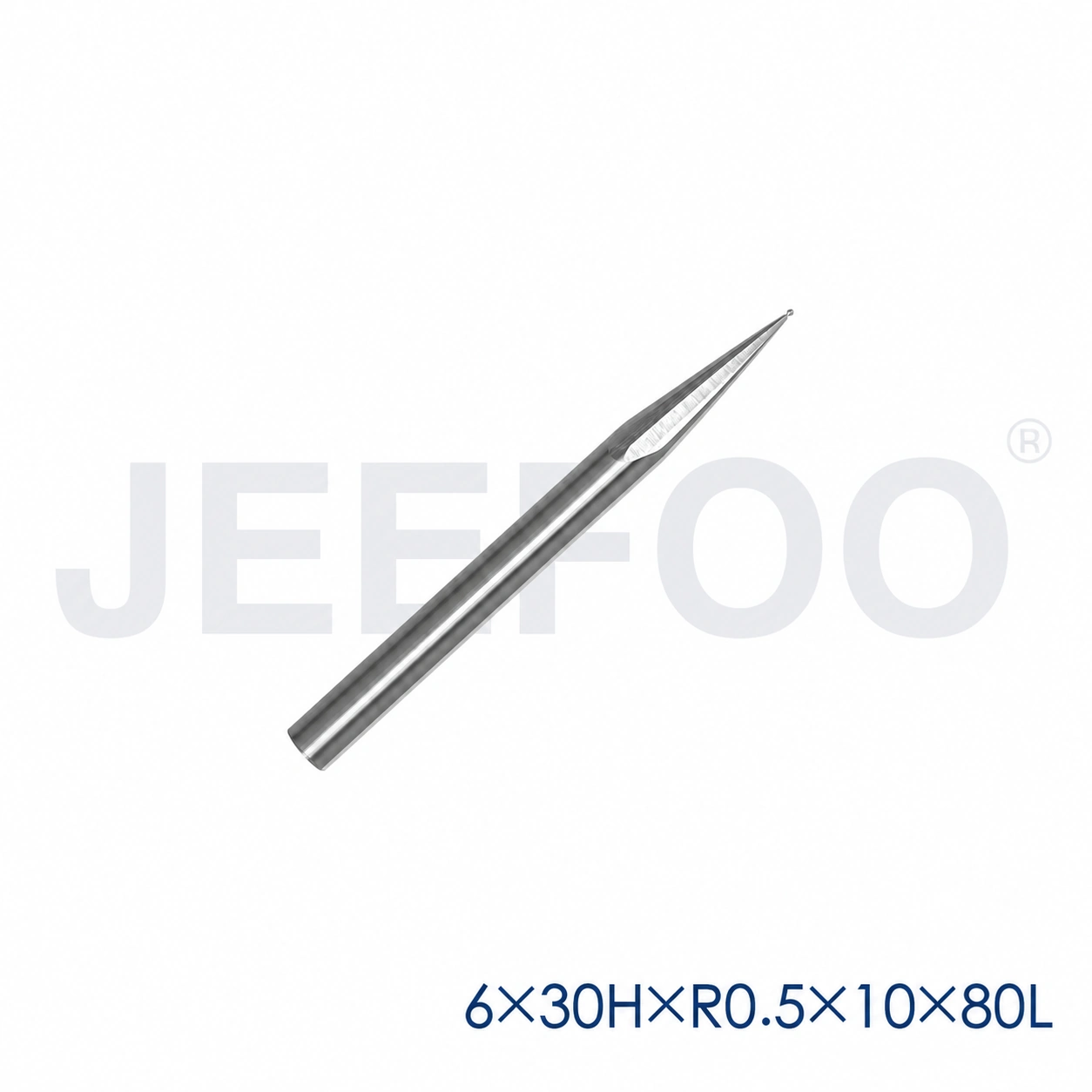

Product details: Shank diameter: 6 mm; ball radius: R0.5; included angle: 10°; cutting height: 30 mm; overall length: 80 mm.
GC-6 x R0.5 x 10° x 30H x 80L Taper Ball End Mill for Rosewood and Hardwood 3D Relief is manufactured from solid carbide for accurate CNC relief carving and decorative woodworking. Select the correct model and use suitable speeds, feeds, workholding, and dust extraction for the material and machine.
GC-6 R0.5 10° 30H 80L Taper Ball End Mill Applications
This taper ball end mill is intended for CNC relief carving, rounded profiles, decorative contours, and three-dimensional woodworking. Confirmed purchasing identifiers from the product title are: GC-6 x R0.5 x 10° x 30H x 80L Taper Ball End Mill for Rosewood and Hardwood 3D Relief. Confirm the exact drawing and order details before production.
What materials can it machine?
Use this cutter only on compatible wood materials confirmed for the machine and workholding system. It is intended for hardwood and rosewood relief work where the material, grain direction, rigidity, and surface finish have been tested. Different wood species can require different settings, so make a secured sample cut before production and do not assume that one setting fits every material.
What CNC equipment is compatible?
Use the tool on a CNC router or carving machine with the confirmed shank interface, adequate clearance, and a holder or collet approved by the machine manufacturer. Confirm usable reach, machine travel, spindle or router interface, workholding, and the programmed toolpath. The product title contains the model dimensions; verify shank, ball radius, angle, cutting height, and overall length against the product record before ordering.
How should the taper ball end mill be installed?
Clean the shank and collet, inspect the cutting edges, and clamp the tool using the safe insertion depth and tightening procedure specified by the collet and machine manufacturer. Set tool length and work coordinates carefully, check runout, and make a shallow air cut or test pass above the workpiece. Verify clearance around the complete tool length before entering a deep relief toolpath.
What machining parameters should be used?
No universal RPM, feed rate, stepdown, stepover, or depth-of-cut value is confirmed for this product. Start conservatively from the CNC machine, spindle, CAM software, and material guidance, then adjust after checking chip formation, vibration, surface finish, and tool temperature. Use secure workholding and effective dust extraction, and never exceed the limits of the machine, holder, collet, or cutter.
How do I select the correct model?
Select by shank diameter, ball radius, angle, cutting height, overall length, required reach, and the relief detail in the CAD/CAM toolpath. A smaller radius may support finer detail, while a longer reach can be more sensitive to deflection. Confirm the exact model code, dimensions, machine interface, material, quantity, and delivery details with JEEFOO before purchase. If a specification is not listed, request confirmation rather than inferring it from a similar cutter.
Safety and purchasing checklist
- Wear eye protection and follow the CNC router manufacturer safety instructions.
- Use suitable dust extraction and housekeeping for wood dust; review OSHA wood dust guidance.
- Inspect the tool, collet, workholding, and machine guards before every job.
- Stop immediately if there is unusual noise, excessive vibration, smoke, or visible damage.
- Before ordering, confirm the shank, radius, angle, cutting height, overall length, material, machine, and quantity.
