Taper ball end mill application: This model is intended for confirmed CNC wood relief and rounded-profile work; verify material, machine, and toolpath before cutting.
Application: For rounded 3D relief, decorative profile machining, and smooth contour work on rosewood, hardwood, and other compatible wood materials.
Features: The R1.5 ball nose produces smooth transitions on broader profiles, while the 6° taper supports controlled access to sloped relief surfaces. Solid-carbide construction helps maintain cutting stability and edge life.
Product details: Shank diameter: 6 mm; ball radius: R1.5; included angle: 6°; overall length: 80 mm. Confirm the cutting height from the selected model specification.

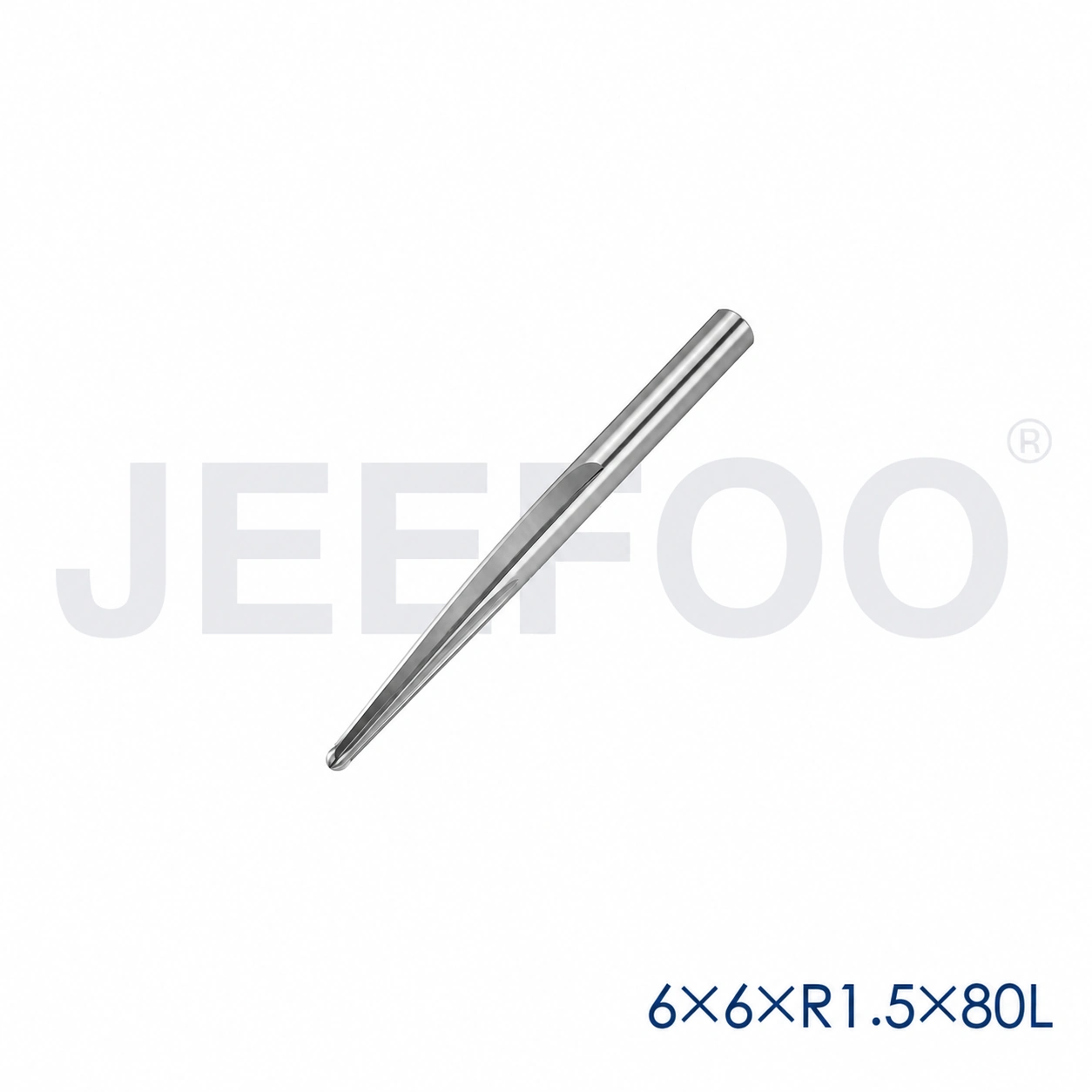

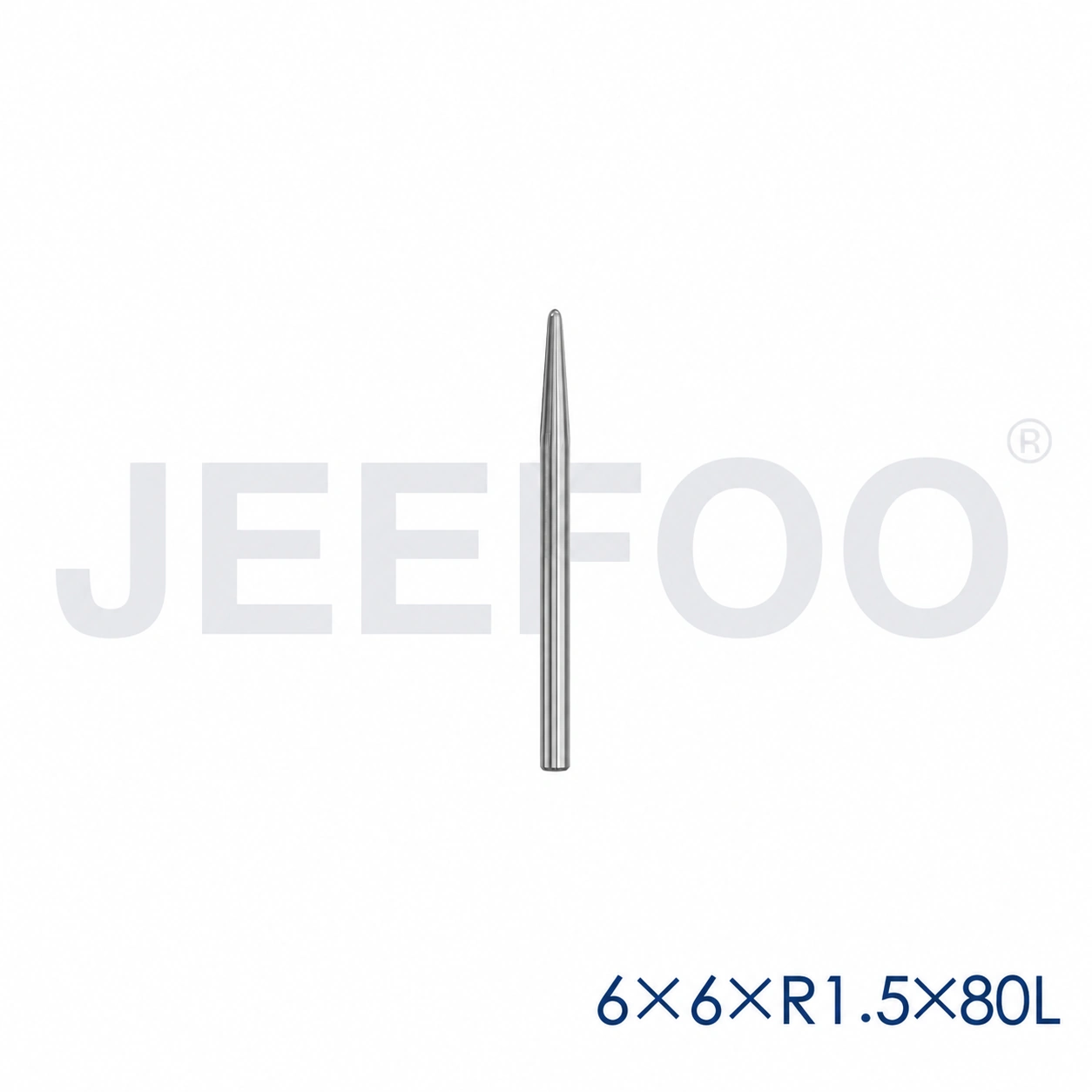

GC-6 x R1.5 x 6° x 80L Tapered Ball-Nose Cutter for Rounded Wood Profiles is manufactured from solid carbide for accurate CNC relief carving and decorative woodworking. Select the correct model and use suitable speeds, feeds, workholding, and dust extraction for the material and machine.
GC-6 x R1.5 x 6° x 80L Taper Ball End Mill Applications
This taper ball end mill is intended for CNC relief carving, rounded profiles, decorative contours, and three-dimensional woodworking. Confirmed purchasing identifiers from the product title are: GC-6 x R1.5 x 6° x 80L Tapered Ball-Nose Cutter for Rounded Wood Profiles. Confirm the exact drawing and order details before production.
What materials can it machine?
Use this cutter only on compatible wood materials confirmed for the machine and workholding system. It is intended for hardwood and rosewood relief work where the material, grain direction, rigidity, and surface finish have been tested. Different wood species can require different settings, so make a secured sample cut before production and do not assume that one setting fits every material.
What CNC equipment is compatible?
Use the tool on a CNC router or carving machine with a confirmed mm shank interface, adequate clearance, and a holder or collet approved by the machine manufacturer. Confirm usable reach, machine travel, spindle or router interface, workholding, and the programmed toolpath. The product title indicates a ball radius of Rconfirmed, an included angle of confirmed°, a cutting height of confirmedH where stated, and an overall length of confirmedL where stated; verify each dimension against the product record before ordering.
How should the taper ball end mill be installed?
Clean the shank and collet, inspect the cutting edges, and clamp the tool using the safe insertion depth and tightening procedure specified by the collet and machine manufacturer. Set tool length and work coordinates carefully, check runout, and make a shallow air cut or test pass above the workpiece. Verify clearance around the complete tool length before entering a deep relief toolpath.
What machining parameters should be used?
No universal RPM, feed rate, stepdown, stepover, or depth-of-cut value is confirmed for this product. Start conservatively from the CNC machine, spindle, CAM software, and material guidance, then adjust after checking chip formation, vibration, surface finish, and tool temperature. Use secure workholding and effective dust extraction, and never exceed the limits of the machine, holder, collet, or cutter.
How do I select the correct model?
Select by shank diameter, ball radius, angle, cutting height, overall length, required reach, and the relief detail in the CAD/CAM toolpath. A smaller radius may support finer detail, while a longer reach can be more sensitive to deflection. Confirm the exact model code, dimensions, machine interface, material, quantity, and delivery details with JEEFOO before purchase. If a specification is not listed, request confirmation rather than inferring it from a similar cutter.
Safety and purchasing checklist
- Wear eye protection and follow the CNC router manufacturer safety instructions.
- Use suitable dust extraction and housekeeping for wood dust; review OSHA wood dust guidance.
- Inspect the tool, collet, workholding, and machine guards before every job.
- Stop immediately if there is unusual noise, excessive vibration, smoke, or visible damage.
- Before ordering, confirm the shank, radius, angle, cutting height, overall length, material, machine, and quantity.
